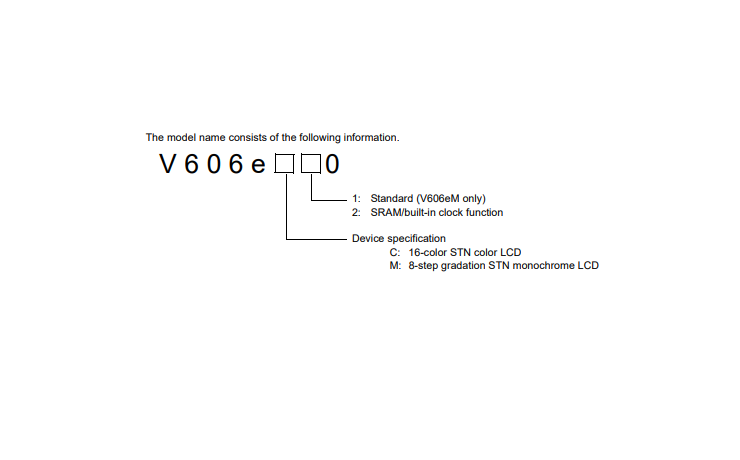

V606EM10 | ||
---|---|---|
Power supply | Rated voltage | 24 VDC |
Permissible range of voltage | 24V 10% DC | |
Permissible momentary power failure | Within 1 ms | |
Demand (maximum rating) | 10 W or less | |
Inrush current | 10 A, 1 ms | |
Insulation resistance | 500V DC, 10M or more | |
Physical environment | Operation ambient temperature | 0 ~+50 (V610 STN Color : 0 ~+40 ) |
Storage ambient temperature | -10 ~+60 C | |
Operation ambient humidity | 85% RH or less (without dew condensation) | |
Resistance to solvent | No attachment of cutting oil or organic solvent | |
Atmosphere | Not exposed to corrosive gas or conductive dust | |
Mechanical | Resistance to oscillation | Vibration frequency: 10~150Hz, Acceleration: 9.8m/s (1.0G) Single amplitude: 0.075mm, 3 directions of X, Y and Z: one hour |
Resistance to shock | Pulse shape: Sine half wave, Peak acceleration: 147m/s (15G), 3 directions of X, Y and Z: six times |
|
Electric | Noise proof | 1000 Vp-p (pulse width 1µs, rise time: 1 ns) |
Static discharge | Compliant with IEC61000-4-2, contact: 6 kV, air: 8 kV |
|
Installation conditions | Grounding | Grounding resistance: less than 100 Ω |
Structure | Protection structure: front panel: compliant with IP65 (when using waterproof gasket) rear case: compliant with IP20 Form: in a single body Mounting procedure: inserted in a mounting panel |
|
Cooling system | Cooling naturally | |
Weight | Unit only: approx. 800 g | |
Dimensions W×H×D(mm) | 181.6 × 138.8 × 44 | |
Panel cutout (mm) | 174 × 131 | |
Case color | BLACK | |
Material | PC/ABS |
